AM153040SF-4H

The AM153040SF-4H is a broadband, high-power amplifier (HPA) module engineered for demanding instrumentation and wideband communications applications. Operating continuously across the 1.5 GHz to 3.0 GHz band, the module delivers more than 10 watts (40 dBm) of CW output power together with a nominal 38 dB of small-signal gain, providing a single-stage solution where both high gain and high linear power are required.

The module integrates a complete bias-management subsystem, including an on-board DC voltage regulator and an internal negative-voltage generator, allowing the amplifier to be operated from a single positive supply of +15 V to +20 V. This eliminates the need for an external negative gate supply and simplifies system-level power-supply design and sequencing. An integrated output power detector provides a convenient means of monitoring output level for closed-loop power control, fault detection, or system telemetry.

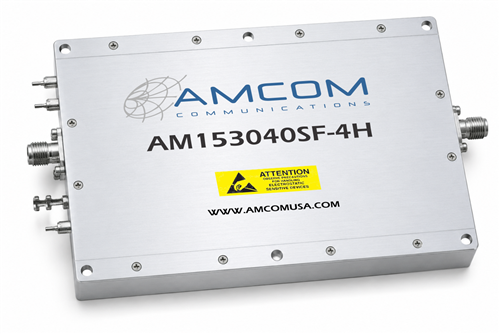

Mechanically, the amplifier is supplied as a self-contained module with six mounting holes for direct attachment to a system heat sink or cold plate, ensuring efficient thermal transfer under continuous high-power operation. The combination of broadband coverage, high linearity, integrated bias circuitry, and rugged packaging makes the AM153040SF-4H well suited for both laboratory test equipment and deployed communications hardware.
